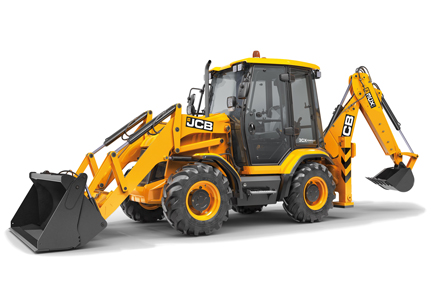

JCB 3CX Compact Backhoe Delivers Big Machine Performance

JCB is launching its innovative 3CX Compact Backhoe Loader, delivering big machine performance for confined jobsites. A pioneer of the compact backhoe, JCB is taking the concept to a new level, to meet the demands of tomorrow’s construction sites. The 3CX compact is well-suited for the utility, cemetery and municipal markets and ideal for use on construction projects in urban areas with space constraints.

The 3CX compact combines the digging power and ease-of-use of a compact excavator, with the capabilities of a compact wheel loader, yet it is far more than simply a digging and loading machine. Backhoe loader, compact excavator and skid steer loader attachment compatibility allows the 3CX compact to work with a wide-range of attachments and hand held tools, for maximum versatility and utilization.

At the front end, the loader comes with a range of buckets that can be supplied with optional cutting edge for road stripping applications. A load over height of 297 cm and max forward reach at full height of 112 cm allows easy loading of trucks and other high-sided vehicles. The machine can also be ordered with a hydraulic quickhitch, for faster attachment changes.

The 6-in-1 bucket makes the 3CX compact the ideal machine for a host of jobs on site. Pallet forks and specialty attachments, such as sweepers, add to the machine’s versatility.

The 3CX compact is powered by a 74 hp Tier 4 final diesel engine. This highly efficient engine meets both U.S. and European emissions standards without the need for a diesel particulate filter (DPF) or any exhaust aftertreatment or exhaust fluid.

The engine drives through a 3-speed hydrostatic transmission to all 4 wheels, for maximum traction across difficult site conditions. The hydrostatic transmission offers a 40 km/h top speed for travel between sites. The transmission also features a creep mode, which allows the operator to run at high engine rpms to power high-flow attachments such as road planers, with a maximum travel speed of just 3 km/h.

Riding on equal-sized wheels, the 3CX compact has selectable 2- and 4-wheel steering. An exceptional turning radius of 5.8 m to the outside of the wheels with brakes engaged and 6.7 m without brakes makes the machine highly maneuverable and easy-to-operate on tight urban jobsites.

Pilot controls are standard on the 3CX compact, reducing operator effort and increasing controllability. The comfortable operator’s cab provides plenty of storage capacity with easy-to-reach gear selector. The operator benefits from a fully adjustable suspension seat and can adjust temperature inside the cab through the heater and optional air conditioning system.

The hood design is slim, providing maximum visibility for the operator. A laminated front screen, reinforced glass and rear window protection improves safety. Flat glass permits simple replacement of broken windows. Front and rear halogen work lights deliver maximum worksite visibility. Optional LED lights with boom-mounted lights are available for all around night operation visibility.

The 3CX compact is supplied as standard with JCB’s LiveLink telematic tracking and monitoring system. LiveLink permits the owner to monitor the machine’s performance. In addition, LiveLink allows real-time tracking to permit rapid relocation in the event of machine theft.

Source: JCB
