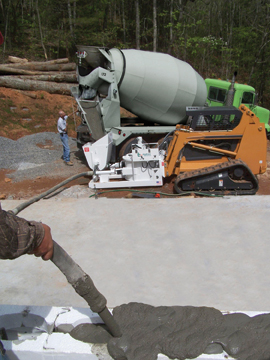

Blastcrete Equipment Company, manufacturer of concrete mixers, pumps and related products, offers the Model RD6536 Skid Steer Pump Attachment. Featuring a universal design compatible with any skid steer, the 7,6 cm hydraulic squeeze pump is ideal for ICF, block fill, form and pour, driveways, basements and various shotcrete applications. With the ability to pump grout materials, 1 cm shotcrete and 2 cm structural concrete mixes, the RD6536 is a fast, efficient solution for contractors performing a variety of concrete and shotcrete applications. The unit offers a variable speed of 0,19 m3/h. Vertical pumping distance reaches 15 m with the use of a rubber delivery line, while horizontal distance can reach up to 76 m. A hydraulic agitator is included in the receiving hopper. The agitator’s continuous motion keeps the mix well-blended, ensuring aggregate and sand stay evenly suspended throughout the mix. Not only does this result in high-strength concrete, it keeps the aggregate and sand from settling to the bottom of the hopper and clogging near the suction area. To relieve pressure build-up clogs and eliminate potential damage to the pump, the RD6536 can be run in both forward and reverse. Hydraulically powered controls are located on the pump and also operate both agitator and pump speed. The RD6536 weighs in at 1225 kg and hydraulic oil requirement is 68 l/min at 207 bar. The frame is designed to be narrow enough to fit between the wheel wells of most standard work trucks. The unit includes forklift pockets to allow quick and easy loading and unloading from the transport vehicle.
|
|
