A New Geax Piling Rig for Turnkey Site Solutions

Selix Equipment Inc. is pleased to announce the delivery of a new Geax piling rig to Turnkey Site Solutions in the Greater Toronto Area (GTA), in Ontario.

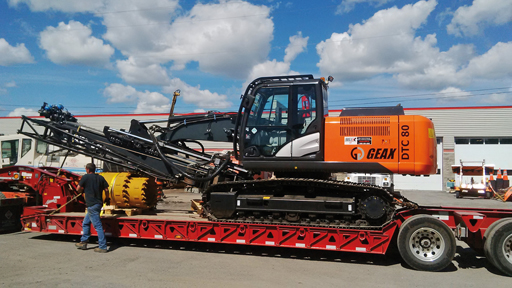

This new Geax model DTC80 is mounted on a Hitachi ZX-160 LC5 with over 120 hp, well enough to achieve the DTC 80 impressive's 31 m drilling capability when equipped with a telescopic Kelly Bar. The Geax DTC80's rotary head is placed well above any competitor model at over 82 kNm (60,500 lbf ft) of nominal torque and a main winch line pull of 120 kN (26,980 lbf) and a crow system of over 178 kN (40,000 lbf) of extraction force to pull you out of any situation. The DTC80 maximum pile diameter of 1.5 m can be drilled down to 31 m and can work in confined areas with minimum working head room of 8.1 m. This machine was delivered with a complement of tools from Carandina including a 762 mm (30’’) and a 914 mm (36’’) rock auger, a 762 mm (30’’) standard earth auger and also a 762 mm (30’’) and a 914 mm (36’’) core barrels ready to tackle the tough work.

“A really well balanced drill rig” is what all operators say about the Geax brand. This DTC80 weighing at 24 t is the perfect size to get the job done.

Selix Equipment Inc. would like to take this opportunity to congratulate Turnkey Site Solutions on their new acquisition and to thank them for the confidence, trust and support that they have demonstrated to the Selix team.

Source: Selix Equipment Inc.
