Stringless Controls Speed Airport Project

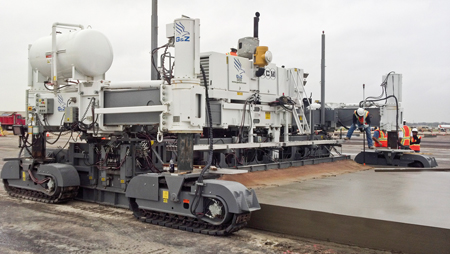

That is the situation faced by MCM, a heavy civil and building contractor, at Dallas Love Field Airport where the city of Dallas, Texas, and Southwest Airlines are collaborating to build a $500 million-plus airport renovation project. A number of gates must remain open during four years of construction, which will wind up in 2015. MCM has a $68 million contract to remove concrete, grade the subgrade and base, relocate utilities (including a new aircraft refueling system), and place 249,000 m2 of new concrete pavement. Most of that is 43 cm jointed plain concrete with no steel. There are smaller amounts of 38 cm and 20 cm concrete pavement. “The biggest challenges are the small pieces of pavement and the phasing,” says Luis Munilla, Business Operations manager for MCM in Texas. “Our average production days as we get into the largest segments of work are going to be in the area of 917 m3 per day.” To take on the paving project, MCM bought a new four-track S850 Guntert & Zimmerman slipform paver fitted with a stringless control package from Leica Geosystems.

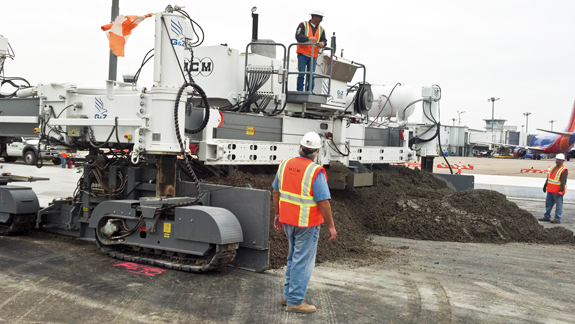

“When we came to Texas we were committed to hire a local workforce,” Mr. Munilla continues, “and we understood that the key to a successful project was a solid team that would offer the best possible value to our client, so we strived to find the best concrete paver on the market. Guntert & Zimmerman is number one and in spite of the inherent complexities of the job, the project is advancing smoothly”. “We also purchased the Leica stringless package with the paver, and we have had some amazing results with that,” Mr. Munilla continues. “Many of our pavements out here are right on plan grade, or within 0.25 mm; the results are just amazing. The stringless controls really help trucking and production.” “Typically MCM paves either 7.6 or 9.1 m wide, and saws the pavement into 3.8 m square panels or 4.6 m panels,” explains Joe Roundtree, general superintendent for MCM’s Dallas Love Field Airport. “The Guntert & Zimmerman paver helps with placing small pieces because the tracks can turn 90° under the paver at the end of a run”.

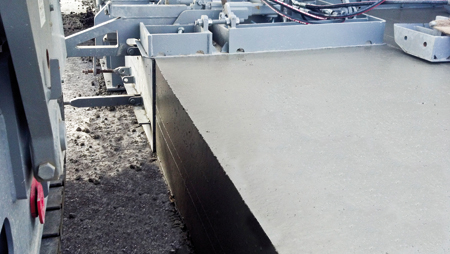

With stringless controls, two robotic total stations utilize two prisms on the paver to “tell” the paver its precise location. A computer onboard the paver then computes the difference between the actual location of the paver pan and the design location in the 3D digital model. With that information, the onboard computer can automatically control the paver pan. MCM actually uses four robotic total stations on the project. “We have additional total stations out there so that we can check our depths and our pavement surface right behind the paver,” says Mr. Vanness.“We have a man who stands on the rear catwalk of the paver when we get to the area where we need to check the height of the pavement. He uses a Leica rover and data collector to check the existing slab. That way we can move forward with confidence that we don’t have any issues with non-conforming pavement.” “Quality control inspectors on the job are thrilled,” says Mr. Roundtree, with the pavement edges produced by the Guntert & Zimmerman S850. “The edges are sharp and clean, and this is a very big point of contention on airport jobs,” he says. “One of the biggest advantages to stringless is that you create a 3D model,” says Mr. Munilla. “Many people don’t consider this, but that 3D model lets you check for flaws and problems that may not show up in any other way. When we build this model, we can actually look at the surface and check drainages and other things that keep us from running into bottlenecks and problems in the future. So that model is a neat thing about stringless.” |
|
