Metso Minerals at Work on Safford Mine Project
Strong collaboration allows Phelps Dodge Mining Co. to commission Safford Mine ahead of schedule.
The first copper mine to be commissioned in the United States in nearly 30 years is in its last stages of construction and preparation and Metso Minerals equipment will play a large role in the processing plant on site. The Safford Mine is located outside of Safford, Arizona, northeast of Tucson. The mine, which will be commissioned later this year, will produce 240 million pounds per year (108 million kg) of copper cathode through a heap leach process. The production plant is designed to process 103 000 t of crushed stone each day from which the copper will be extracted. All of the crushers, screens and feeders at Safford's primary, secondary and tertiary plants are supplied by Metso Minerals. The equipment At the heart of the plant are six MP1000 cone crushers. "Many different iterations of the plant flow were simulated and different scenarios considered in concert with the Phelps Dodge project team until the final flowsheet and plant design was developed and agreed on by all involved", says Ivan Pavlovic, Metso vice-president of capital projects & global crushing sales. Dave Ogonowski, senior project manager for Phelps Dodge Mining Co. says these crushers were selected because of a number of factors including robust design, higher installed power and reduction capabilities while operating in open circuit, but ultimately for their ability to meet production demands. Two units will act as secondary crushers and four will be tertiary crushers. "After various options were explored from an engineering basis, it was decided that the project would include MP1000 crushers," said Mr. Ogonowski, who was responsible for engineering procurement, construction and commissioning at the mine site. "Metso was super in providing technical information and worked with us exceedingly well through the acquisition and construction process." Metso Minerals also provided the screens for the processing plant. Two 12 x 27 double deck Multi-Flo screens are used in the secondary plant and four 12 x 27 single deck screens are used in the tertiary plant. These screens were chosen mainly for their size, said Ron Kuehl, Metso Minerals' product manager for mining screens." Phelps Dodge needed a heavy, substantial machine to handle the expected capacity of 3265 t/h," said Mr. Kuehl. With isolation frames and dust enclosures each of the double deck screens weighs 52 163 kg. Phelps Dodge has also placed orders for one spare feeder, a double deck screen and a single deck screen as well as the necessary supply of spare parts to maintain top efficiency and equipment utilization at this plant.
"Metso was very flexible in terms of locking in production slots with us and doing it with the minimal amount of commitment on our part," said Phelps-Dodge's Ogonowski. While improved commission date has not yet been determined, the mine will be producing copper earlier than originally scheduled.

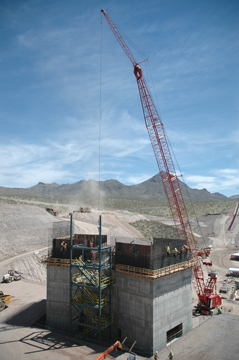

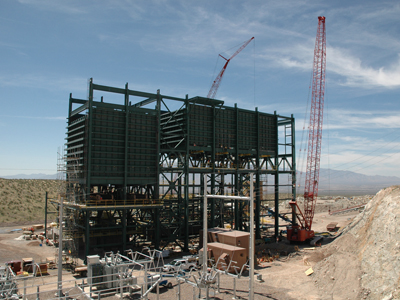

Metso Minerals Equipment at Safford Mine
|
|
