Pettibone Hits Peak Lift Height with Extendo 1157B Telehandler

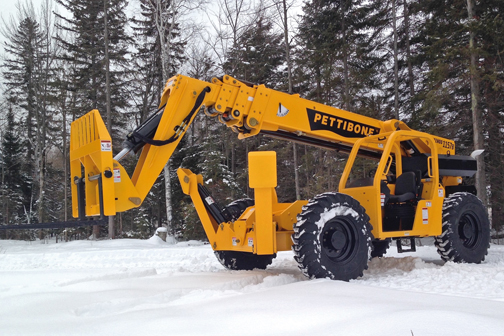

The new Pettibone 1157B is the highest reaching telehandler in the company’s Extendo product line. Featuring industry-leading hydraulics and engineered for efficient performance, the 1157B offers excellent lift capacity for a wide range of material handling jobs.

Delivering a maximum load capacity of 5,000 kg, the Extendo 1157B provides forward reach up to 12.8 m, and an outstanding maximum lift height of 17.4 m. Single joystick, pilot-operated controls allow for smooth control of all boom and auxiliary hydraulics. For operation in tight areas, the 1157B offers 4-wheel, 2-wheel and crab steering modes and has a turning radius of just 3.8 m. The unit is exceptionally powerful, yet compact enough to fit under a 2.4 m doorway.

The 1157B is powered by a fuel-efficient, 117 hp Cummins QSF 3.8 Tier 4 final turbodiesel engine, featuring electronic control and protection with SCR after-treatment. A Parker IQAN-MD3 display provides instant engine and aftertreatment diagnostics. The machine’s fully modulated Carraro Powershift transmission offers 4 speeds, forward and reverse. Maximum travel speed for the 1157B is 32 km/h.

The rugged design of the Extendo features 2 wide-stance, heavy-duty lift cylinders with innovative automatic fork and load leveling that eliminates the need for slave cylinders. To further improve load stability, the 1157B offers 24° of frame sway (12° left and right of center) and is equipped with a rear axle stabilization system. The unit is also outfitted with standard foam-filled tires.

The operator cab is built to provide outstanding visibility at any boom position. Engineered with comfort in mind, the Extendo also comes with an adjustable suspension seat and adjustable right-side armrest. A full set of gauges provide instant machine status.

The 1157B telescopic handler comes with a variety of standard fixed and side-tilt carriages from 120 to 180 cm, and several optional attachments are available – including utility buckets and pallet, lumber and block forks. Other optional equipment includes light packages, an enclosed, climate-controlled cab, and several others.

Source: Pettibone/Traverse Lift, LLC
