New Potain MDT 489 Topless Crane Offers High Capacity With Low Operating Costs

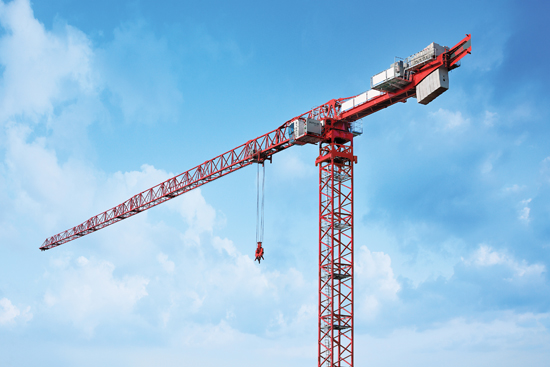

The new Potain MDT 489 topless crane from Manitowoc fills the gap between the MDT 389 and MDT 569 models and is ideal for large-scale construction and infrastructure projects, especially the installation of large, prefabricated components, as well as for shipyards and mines with heavy loads to handle.

The MDT 489 delivers a high capacity with a maximum load of 20 t or 25 t and a 80 m jib for broad coverage and reach on the jobsite – all while offering the cost-saving benefits of easy transport and quick assembly and disassembly.

In addition, its compact crane configuration enables it to operate on tight and congested sites. The MDT 489 has been designed for high performance, while keeping the concept of using topless technologies that overlap and avoid collisions on jobsites with multiple cranes, unlike hammerhead tower crane models.

All components, save the slewing mechanism, can be transported in standard-sized shipping containers. The rotating section of the MDT 489 can be transported in just nine containers. That is four or five fewer than needed for a typical crane of this size, decreasing transport cost and complexity, as well as making access to the jobsite much simpler. Protective packaging with brackets helps secure the jib sections and cushioning pads within the containers protect the sections while facilitating efficient packing.

When the MDT 489 arrives at the jobsite, it is quick to assemble and requires very little space.

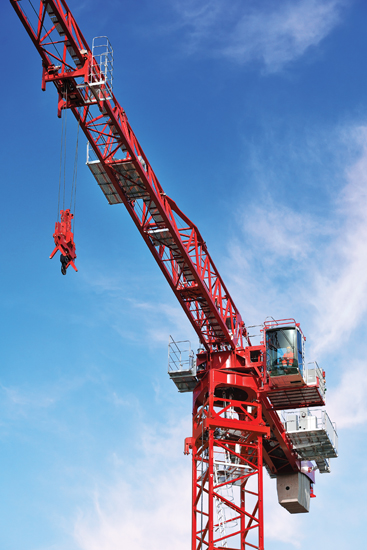

Using Manitowoc’s Crane Control System (CCS), the MDT 489 can be set up in just 15 minutes. Moreover, this feature promotes highly controlled and efficient operation throughout the crane’s time on the jobsite. The trolley offers 2 falls for fast duty-cycle lifting or four falls for heavy lifting. The wire ropes for the trolley can be tensioned and then the sensor recalibrated simply by using a push-button inside the operator cab. This is ideal for long-term jobsites that require more frequent tensioning. Once the MDT 489 has completed its work on the jobsite, it can be quickly and easily disassembled, ready to make way for other cranes or move on to its next job.

Customers have the option of the new high-performance 110 HPL winch or the 150 HPL. (The 132 HPL and 180 HPL are available for the North American market). Productivity is dramatically increased with the new 110 HPL winch, as lifting speeds are up to twice that of the older 100 LVF winch. This feature, in combination with new motor brake management and a new architecture that facilitates maintenance operations, means the 110 HPL winch speed up construction times, improve overall driving comfort and provide more precise load placement. These performance improvements do not increase power consumption, and maintenance is easier. Additionally, with the Power Control functionality, it is possible to limit the maximum electric power required for the crane operation without impacting low-load and no-load working speeds.

Like all Potain CCS cranes, the MDT 489 is equipped with the CraneSTAR Diag solution. Potain's remote diagnostic tool allows the customer to consult the machine's activity in real time. Thanks in particular to the forecasting of maintenance operations and advanced diagnostic assistance, the customer optimizes the availability of its cranes and the return on investment. The recovery of operating data allows the measurement of the crane utilization and load rates in order to optimize productivity and operational efficiency on construction sites.

Source: The Manitowoc Company, Inc.
