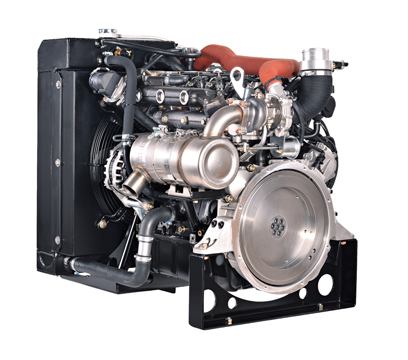

Hatz 4H50TIC Available as Ready-to-Install “Open Power Unit”

In order to meet the strong customer demand for a ready-to-install plug & play solution of the new water-cooled 74 hp engine, Hatz offers the 4H50TIC now as an “Open Power Unit” (OPU). In addition to the standard scope of delivery of the engine, all parts which are required for the operation of the engine are delivered with the 4H50TIC OPU. These include a radiator and intercooler mounted vibration-decoupled, as well as the appropriate tubing and wiring harness. All parts are installed in the factory during the production process.

Thus, the customer only needs to connect tank, pre-filter and pump as well as air filter, battery and control box.

During the development of the OPU, special attention has been paid to the fact that the OPU can be used with a wide range of applications. Therefore, the OPU is already available in lot sizes of one piece. The main application areas of the 4H50TIC OPU are primarily working machines such as hydraulic lifts, hydraulic power units, forestry machinery, drilling rigs and stationary applications such as pumps and generators. The cooling is adapted to a temperature range of up to 46°C. Different radiators or other temperature ranges are possible depending on customer requirements.

The 4H50TIC as OPU meets the strict EPA Tier 4 final emission regulations. Both emission standards are being achieved without the use of a diesel particulate filter (DPF). The after treatment is merely limited to a diesel oxidation catalyst (DOC). Based on legal or customer requirements, for example in urban areas, the power unit, however, can be configured and supplied with a separable diesel particulate filter (DPF).

In addition to the flexible use, the 4H50TIC OPU is also characterized by the known attributes of the basic engine. The extremely light weight of the base engine is reflected, of course, in the weight of the complete package. With 255 kg the complete package weighs just 82 kg more than the base engine. In addition, the box dimensions with 699 mm in width, 935 mm in length and 807 mm in height allow flexible installation even in restricted installation space.

Source: Motorenfabrik Hatz
