InfraStructures - March 2015 - Atlas Copco Featured Its BV30 Vibrating Screed at World of Concrete

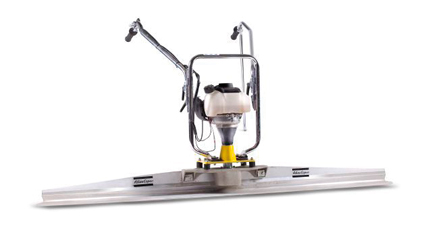

Atlas Copco Featured Its BV30 Vibrating Screed at World of Concrete

The compact, single-beam vibrating screed allows contractors to level concrete in a variety of applications, including garage floors and driveways as well as in confined areas. The BV30’s interchangeable blades, lightweight aluminum body and rigid screed blade provide maximum versatility, easy handling and stability. Atlas Copco exhibited the BV30 vibrating screed at World of Concrete.

The BV30 weighs as little as 12.7 kg and is available with 5 blade sizes, ranging from 183 to 427 cm long. The variety of blade sizes gives contractors the flexibility to use the screed on both small- and large-scale jobs. The screed is equipped with a V-shaped, rigid bottom plate that prevents the blade from twisting to ensure stable and consistent leveling. And because the screed vibrates, it eliminates the need for pokers while leveling concrete as deep as 127 mm.

This single-beam vibrating screed offers a height-adjustable, foldable handle for easy operation and transportation. It can be maneuvered by one operator and includes unique features, such as an adjustable centrifugal force of the screed. This feature is ideal for efficient leveling of nearly any type of concrete.

The BV30 is equipped with a Honda GX35 Mini 4-stroke engine and includes a damper between the engine and the handle that minimizes hand and arm vibrations.

“The BV30 gives operators optimal flexibility in a screed,” said Darrell Engle, product development specialist at Atlas Copco. “Its assortment of blade sizes gives the operator the versatility to use one screed to tackle a variety of jobs.”
Operators can easily clean the screed with water and a stiff broom, which ensures it is easy to handle and operates efficiently on the next job.

Source: Atlas Copco
