John Deere Makes Snow and Debris Cleanup Easy
With New Angle and Pickup Brooms

John Deere is updating its line of Worksite Pro^™ attachments with 3 new angle and 5 new pickup brooms. The BA72C, BA84C and BA96C angle brooms and the BP72C, BP84C, BR60C, BR72C and BR84C pickup brooms were designed for effortless cleanup in turf, snow and construction applications. Like all Worksite Pro attachments, these angle brooms are optimized to work with John Deere skid steers and compact track loaders. They are also compatible with most competitive models.

“With new OSHA silica dust exposure rules, contractors are in need of attachments with options that meet these requirements and make contractors more competitive bidders,” said Jessica Hill, program manager, global attachments, John Deere Construction & Forestry. “We designed a new class of brooms to deliver more durability and jobsite protection to help our customers get the most of out of their investments.”

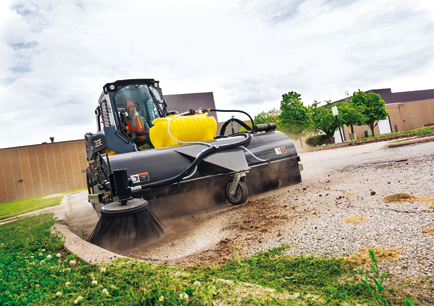

The new pickup brooms are superior solutions for dust mitigation challenges and restrictive barriers, like curbs and sidewalks. These pickup brooms feature a 660 mm diameter brush with standard 50/50 poly-wire segments and optional all-polypropylene brush segments, allowing operators to customize the attachment to their jobsite. The BR models use bolts for precise brush-contact adjustment, while the BP models incorporate a tool-free system for fast, easy adjustment. BP models feature a 12.7 mm single-bevel cutting edge; BR models have a 15.9 mm double-bevel cutting edge. Optional 95 l broom-mounted or 113.5 l roof-mounted water-tank kits are available for dust-suppression applications.

An adjustable baffle on BP pickup broom models increases hopper capacity by 22%, offering greater sweeping impact in each pass. A front caster wheel on BP models allows the brush to follow ground contours, while a front bumper on BR models provides extra strength and protection when sweeping close to walls or obstacles. An optional 510 mm gutter brush with wire bristles can be mounted on the right or left side of any model pickup broom for collecting material close to curbs.

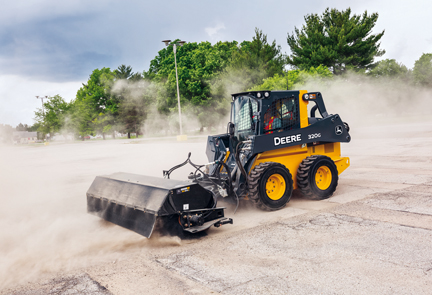

Ideal for turf and snow removal applications, the BA model angle brooms feature a hydraulic-angling range of 30° to the right or left of the machine. The 810 mm diameter brush is made from 50/50 poly-wire segments, a well-suited combination for dirt and debris cleanup on hard surfaces. Optional all-polypropylene brush segments are available for work on softer surfaces. Brush-core removal for bristle replacement is quick and easy, with no tools required. Foldaway storage stands help the brush maintain its round shape when not in use.

An optional hood extension provides 180° brush coverage, while a rubber deflector prevents snow from blowing back onto the machine when winter strikes. An optional 114 l roof-mounted water tank kit is available for applications that require dust suppression.

For added performance and durability, both the pickup broom and angle brooms feature a heavy-duty, high-torque, bidirectional motor coupled to the brush core through a 63.5 mm hex hub. The attachments’ motor and bearing are protected within the broom-frame structure. Motor and bearing separate from the brush core without having to disconnect any hydraulic hoses, eliminating the risk of oil spills or contamination.

Source: Deere & Company
