Elevating sustainability with the PERI UP Scaffolding Kit

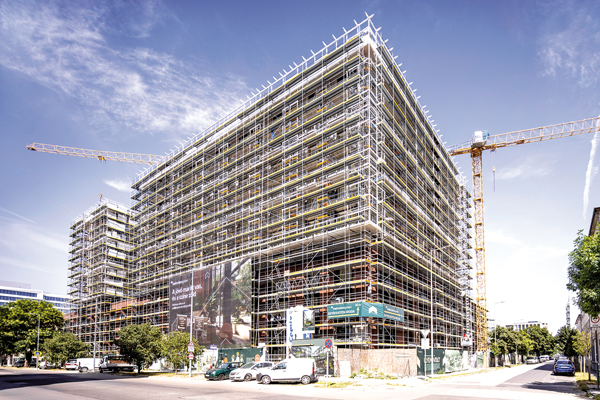

The Metrodom Green project, located in a redeveloped district of Budapest, Hungary, is known for its premium quality, sustainability and innovative technical solutions. The contractor is MTB Industrial Ltd, part of MTB Group.

The 513-apartment complex is being developed in 2 phases. The first phase, comprising 277 apartments, is currently under construction and will take approximately 30 months to complete. The most characteristic feature of the building is the green façade, which extends from the 5th to the 10th floor, where preplanted plants are grown in a nursery and maintained by a watering system in front planters. A 36-m-high scaffolding system covering a total of more than 12,000 m2 was required in order to construct the façade. Due to the unique design of the green wall panels and the challenging anchoring requirements, it was essential that a supplier with compatible scaffolding solutions be commissioned for the project. PERI was the ideal choice for meeting these specific requirements.

Due to the complex layout, the PERI UP Scaffolding Kit is being used to facilitate an efficient construction process over a period of 13 months, with a second phase of a similar scope to follow.

Anchoring Challenges and Compatibility
The project team faced several difficulties, including a complex layout, special anchoring characteristics, and metal trusses on almost every vertical surface. The main challenge was the prefabricated structure of the green wall panels on the façade, which limited the number of scaffold anchoring options. To overcome this difficulty, PERI engineers developed a solution to anchor the façade scaffold directly to the modular scaffold erected between the balconies, thus providing the required stability and safety. Another challenge was the high demands on the load bearing capacity of the scaffolding and the height of 36 m to be erected. However, the innovative components of the PERI UP Modular Façade Scaffold made it possible to manage this requirement.

Innovative Scaffolding Technology for a Modern Complex
PERI engineers provided detailed 3D drawings for the scaffolding plans. These visualisations gave the scaffolding contractor a deeper and more vivid insight into the proposed solutions. Not only the 3D design, but also the on-site training and ongoing site support were key factors in enabling the customer to realise this project successfully.

Versatile Scaffolding Solution
A total of 19,000 m3 of modular scaffolding is being erected between the balconies and in the lobbies. The project required flexible scaffolding solutions, which were achieved thanks to the modular design and adaptability to the specific building environment. In this case, a wide range of ledgers and decks allowed the direction of the decks to be varied during assembly to suit the specific geometries.

Everyone involved in this project expressed their appreciation for the scaffolding solutions and services provided by PERI. They emphasised the quality and safety of the scaffolding materials, as well as the sophisticated designs tailored to the unique requirements of the project. They also appreciated the continuous site support and efficient materials management as well as the problem-solving expertise in day-to-day operations.

The Metrodom Green project exemplifies how advanced scaffolding technology can facilitate the implementation of sustainable architectural solutions. Effective use of PERI UP Scaffolding System not only enables safe and efficient construction, but also plays a pivotal role in creating an environmentally responsible façade. This project serves as a model for future developments and shows that innovation and sustainability go hand in hand.

Source: PERI Hungary
