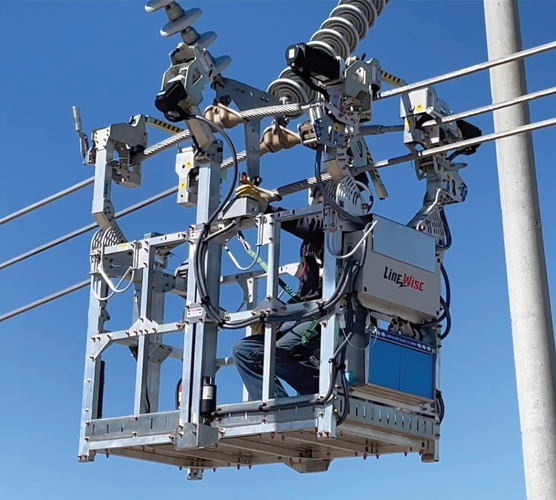

LineWise® New Self-Propelled Tri-Bundle Line Cart
The Tri-Bundle Line Cart from LineWise® is a new, customizable solution to improve safety and comfort when performing line construction, maintenance and inspection. Specially engineered for transmission work, the self-propelled line cart can be used with 2 or 3 bundle configurations, and it offers multiple options to accommodate individual needs. The Tri-Bundle Line Cart is powered by a rechargeable lithium battery or can be configured as a gas-engine-driven hydraulic system. The battery option features 2 48 V, 30 Ah batteries, designed to provide all-day power. Non-slip rubber drive wheels can propel the cart in either direction up to four miles per hour and inclines up to 20°, and joystick controls are conveniently located for ease of use. A parking brake is included for maximum safety, and electric linear actuators provide wheel articulation. Each main wheel support rotates laterally for passing yoke plates, insulators and spacers. The center main wheels raise and lower when removing the unit from conductors. Additionally, a lower roller can be moved up and down 30 cm to manipulate the cart and wire for 3 bundle configurations. The Tri-Bundle Line Cart comes with a cradle, allowing cranes and helicopters to set it on conductors. The top locking bar can be easily released and the wheels and motors moved to simplify the process of placing the line cart on the conductors. Safety tubes are secured across the wheels to support the cart in the event a wheel slips off a conductor. For operator convenience, the Tri-Bundle Line Cart offers retractable hooks for spacer storage. A non-slip floor and folding seat are also included for operator comfort. The line cart has a one-person occupancy limit with a 272 kg total capacity. It is constructed of high-strength aluminum alloy and can also be configured for bonded work.
|
|
|||
