Vögele Presents New Road Pavers and Material Feeders

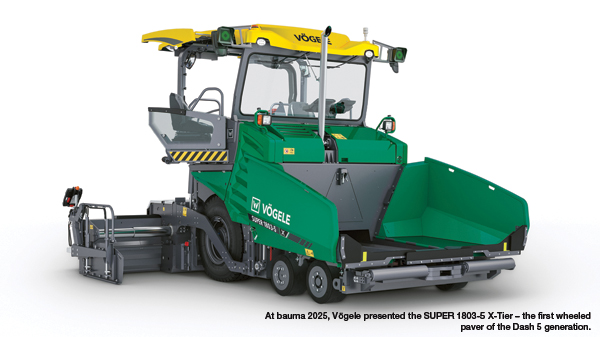

With the SUPER 1803-5 X, Vögele presents the first wheeled paver of the new generation. In combination with the Dash 5 extending screeds AB 500 and AB 600, it offers operating widths between 2.55 m and 8.25 m and is extremely versatile. The powerful Universal Class representative of the new generation now combines the advantages of a wheeled paver - high maneuverability and great mobility during relocation – with the advantages of the Dash 5 machines: greater ease of operation, automated processes, shorter set-up times, and low noise and exhaust emissions. With the enhanced operating concept ErgoPlus 5, Vögele offers a better overview, more convenience and storage options, improved ergonomics, and an optional touch display for digital applications. The new Paver Access Control (PAC) function makes it easy to switch the SUPER 1803-5 X on and off from the ground. In addition, the Light Package Plus option ensures greater safety and reduced set-up times on night-time construction sites. With automatic functions such as Grade Assist for paving roof and transverse profiles, the automatic steering and width control system AutoTrac, or the Smart Pave digital control system, the new paver makes life easier for users – and increases efficiency and quality at the same time.

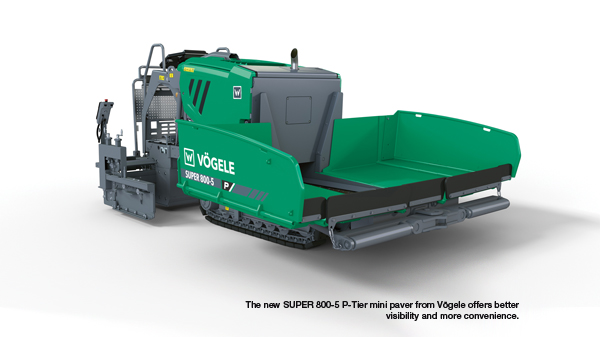

In addition to the SUPER 1803-5 X, Vögele is presenting a new-generation Mini Class paver for the first time at bauma, the SUPER 800-5 P. In combination with the extending screeds AB 200 and AB 220, it offers operating widths between 0.5 m and 3.5 m - making it ideal for narrow construction projects. Compared to its predecessor, the Dash 5 model also incorporates numerous new features. A major advantage of the new mini paver is the optimized material hopper. First, both hopper walls can now be adjusted hydraulically. This allows the best possible position to be set depending on the material feed. The asymmetrical setting, for example for working along a wall, can now be implemented on both sides at the touch of a button. In addition, the hopper walls of the SUPER 800-5 P can be folded in two. This gives the operator an unrestricted view to the front, making it easier to maneuver and load the new Dash 5 paver.

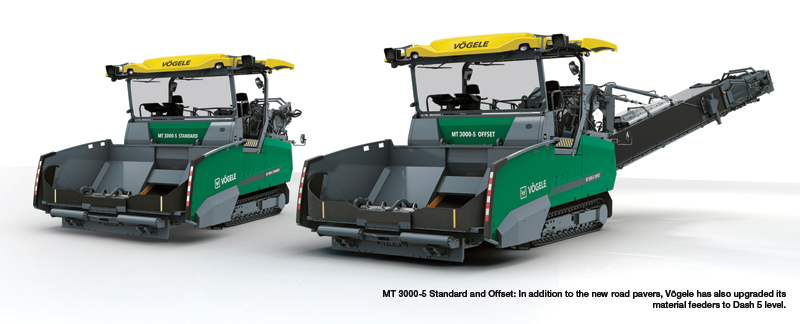

Vögele has also brought its material feeders up to Dash 5 level: Both models, the MT 3000-5 Standard and the MT 3000-5 Offset with a swiveling conveyor belt, are equipped with the new ErgoPlus 5 operating concept, numerous additional convenient features, and the optimized PaveDock Assistant truck communication system. Thanks to the new Dash 5 control technology, the material feeders can also be integrated into the digital solutions from Vögele in future. Both models offer a conveying capacity of up to 1200 t/h and can pick up the full load of mix from a truck within 60 s. The clever material conveying concept with a large receiving hopper and effective conveyor belt heating enables fast unloading and gentle conveying of the mix. Cooling and segregation are reliably prevented. The material feeders are also extremely maintenance-friendly and easy to transport: The drive-on angle and receiving hopper have been specially optimized for transport by a low-bed trailer.
|
|
|||
© InfraStructures - Tous droits réservés - All rights reserved |
Vögele has optimized the operator's platform so the SUPER 800-5 P offers an even better view of all areas relevant for the work. As before, the new ErgoBasic operator's control console can be moved horizontally. In addition, its angle can now also be adjusted in four stages and ergonomically adapted to the height of the operator. The ErgoBasic 5 operating concept follows the operating logic of the larger machines but has been specially adapted to the mini paver. For the first time, the operator's console incorporates a display that allows the operator to view the machine's operating data. In addition, Vögele has fully integrated the operation of the Auto Grade Basic system for automated grade and slope control into the machine control system. This means that screed operators can now control the SUPER 800-5 P compactly via a console, just like the large Vögele pavers. A new storage system with a tool and drink holder, coat hooks, and 24-V socket for mobile devices also ensures organization and convenience.
