The Future of Construction at bauma,
Intelligent System Solutions by ZF

The construction industry is about to see massive changes, driven by volatile markets, economic uncertainties, and governmental regulations, demanding high flexibility and fast development cycles. At Bauma Munich, ZF proves that as a specialist in driveline technology and intelligent system solutions, the Group is the ideal partner to meet these demands.

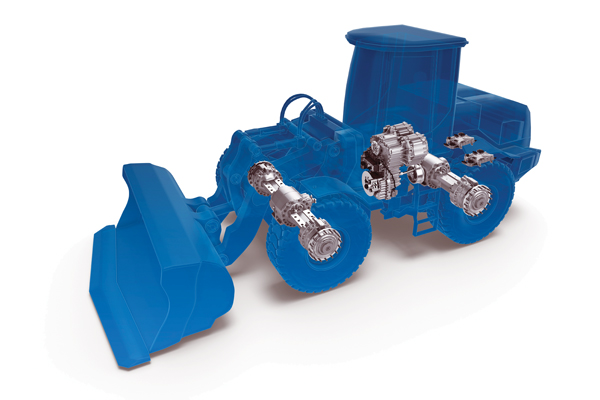

New Modular e-Platform ZF eTRAC Covers Power Range from 20-230 kW for Construction Machinery
The eTRAC electric drive system satisfies all the expectations for performance and productivity found in traditional drivelines and combines them with the extensive benefits and opportunities that electric systems have to offer. Thanks to its modular design this new range of electric central drives can easily be adapted for various vehicle applications. With its latest development – eTRAC eCD110-230 – ZF now covers the power range from 20-230 kW for construction machinery.

Future-Proof Transmission Control Unit Fulfills Upcoming Cybersecurity Standards
In 2027, Cybersecurity will become an important topic for the construction machinery industry.

In January, the Machine Regulation will become effective, followed by the Cyber Resilience Act (CRA) in December.
After both regulations becoming effective, all electronic control units and the software running on them must be cyber security (CyS) compliant. Main focus is the safety of machines and the protection against corruption.

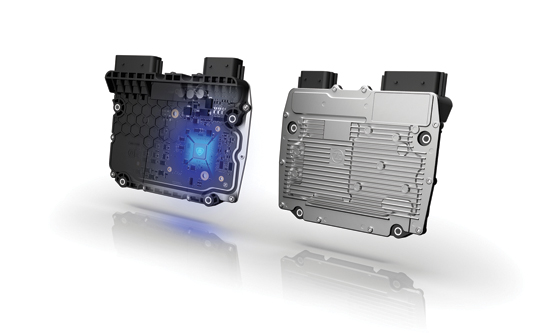

With the drive control unit EC5, ZF fulfills these demands, and is “Cybersecurity Ready”.

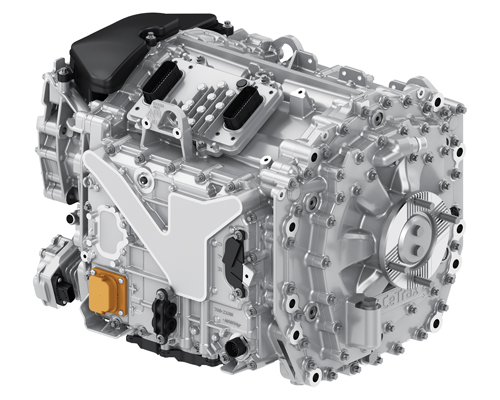

Electric Central Drives for the Construction Industry: CeTrax 2 dual and CeTrax 2
ZF provides vehicle manufacturers with new, powerful options for the electrification of drivelines: CeTrax 2 dual and CeTrax 2. They are based on the modular e-drive platform for heavy commercial vehicles and can be combined with electric and conventional drivelines. Within the installation space of a conventional combustion transmission, the system integrates either one or two oil-cooled PSM e-motors with hairpin windings, the same number of 800 V-based SiC inverters and a 3-speed transmission with e-actuators. With this combination, the highly efficient drive develops a continuous output of up to 380 kW with a peak torque of up to 24,700 Nm. The most powerful variant, the CeTrax 2 dual with two motors, has a system weight of only around 385 kg. Thanks to its compact design, low energy consumption and advanced software architecture, CeTrax 2 dual and CeTrax 2 offer OEMs a future-proof platform that extends battery ranges and supports zero-emission drivelines.

New Torsional Damper for Off-Highway Applications
Mobile off-highway machines have a high need for vibration damping in the powertrain. With its new viscous torsional damper, ZF offers a versatile solution to effectively reduce engine vibrations in all kinds of powertrains.

ZF is a global technology company supplying advanced mobility products and systems for passenger cars, commercial vehicles and industrial technology. Its comprehensive product range is primarily aimed at vehicle manufacturers, mobility providers and start-up companies in the fields of transportation and mobility. ZF electrifies a wide range of vehicle types. With its products, the company contributes to reducing emissions,

Source: ZF Friedrichshafen AG
