New pump empties thickeners and clarifiers

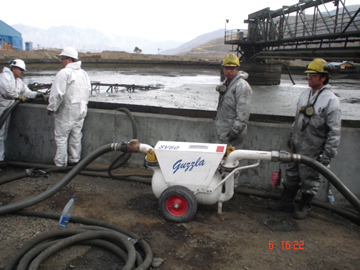

Supavac® SV60 pneumatic displacement pump vacuum loads sludge, slurries and waste from thickeners, clarifiers and digesters and can discharge the contents thousands of feet. And because makeup water is often not required, labor and transport costs are minimized.

These fully automatic pumps, with high solids transfer rates from 10 to 60 m3/h and higher, can achieve fluid suction lifts up to 7,6 m dry static, through 61 m horizontal lines and air flow vacuum pneumatic recovery up to 23 m vertical. The ability to discharge up to 900 m horizontal can eliminate the need for vacuum trucks for onsite transfers.

Applications include: abrasive slurries; muck; drilling mud waste and cuttings; hydrocarbon sludge; dry sand and rock; thickener underflow sludge and hazardous waste.

Pumps and systems are available for rental and purchase from authorized dealers.

Source: Supavac Canada Inc.
