Hilltip Introduces High-Flow De-Icing Sprayers With Electric-Driven Pumps

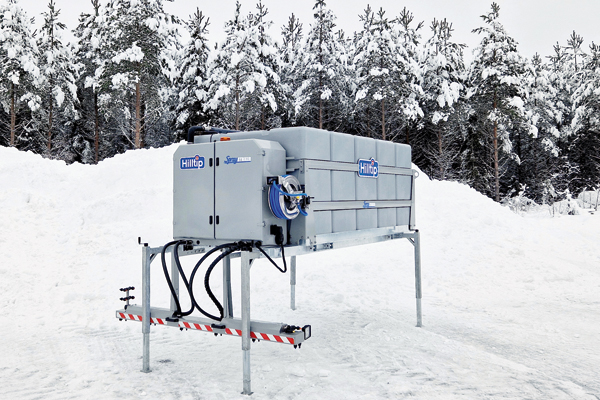

Hilltip introduces its SprayStriker HFE (Hi-Flow Electric) Series de-icing sprayers, featuring the industry’s only electric-driven high-flow pumps. Available with tank capacities from 1,890 to 12,300 l, the HFE series includes the largest sprayers in Hilltip’s SprayStriker equipment family. Intended for municipalities and large contractors, the new models offer a high-performance, environmentally friendly solution for winter maintenance.

HFE series sprayers include specialized dual high-flow pumps and flow meters to pump exact application rates on demand with instant responsiveness. Because no bypass system is used, energy requirements are significantly reduced, and the units can be fully powered by the vehicle’s electrical system. As a result, the HFE series is zero emission, unlike engine-driven sprayers, nor does it require the truck to be equipped with an expensive central hydraulic system.

Despite being fully electric-powered, the HFE series is capable of high output for efficient ice management. The standard 12 V models are capable of spray volumes up to 56 l/min. A 24 V kit is available for producing spray volumes up to 113 l/min.

Like all SprayStriker sprayers, the HFE series comes standard with Hilltip’s exclusive HTrack tracking software. This system offers the industry’s only 2-way GPRS capability, allowing users to create work sites, set customized application rates, monitor drivers, and document all activities remotely using a computer, smartphone or tablet. The unique technology offers unmatched benefits for both managers and drivers in the winter maintenance business.

In the cab, operators can monitor and manually adjust the sprayer settings through a user-friendly color screen controller. When entering a jobsite, the operator can simply press a button to load customized application rates. The pump will then automatically adjust flow rates while the operator focuses on driving. The controller collects important jobsite data, which is uploaded to the HTrack™ portal via Wi-Fi or cellular connection. This data can be used to generate reports for client billing or to provide appropriate documentation for slip-and-fall claims.

Other standard features include a durable poly tank with an LED work light and beacon warning light, as well as a powder-coated stainless-steel frame. The 2-lane, 2.3 m-wide spray bar is equipped with double spray and side nozzles. For operator convenience, the sprayers have a self-loading design and pump-out feature with a two-inch camlock connection. The dual high-flow pumps, motors, valves and CPU units are protected inside an easy-access stainless-steel cabinet for superior reliability and serviceability. A manual de-icing hose reel, leg stand and 3-lane spray bar are optional equipment.

“Liquids are the future of winter maintenance,” said Craig Sandmann, managing director for Hilltip. “They can reduce salt usage by up to 75%, which has a huge impact on cost savings and the environment. We’ve taken this approach to the next level with the high-flow SprayStriker HFE series, which is simple, reliable and zero emission. Combine these benefits with our innovative HTrack software, and you have the most advanced de-icing system available today.”
Although Hilltip is headquartered in Pietarsaari, Finland, the SprayStriker HFE series, along with other products for the North American market, will be manufactured in Fort Wayne, Indiana. This has been made possible through Hilltip’s acquisition of Industrial Truck Products in October 2022, which allowed Hilltip to begin manufacturing products in the North America, while enhancing its sales and service capabilities.

Hilltip is a leading manufacturer of road maintenance equipment in Europe. With equipment designed and built in an area that averages at least six months of snowfall every year, Hilltip is known for its extreme durability and advanced technologies.

Source: Hilltip Corp.
