Easy-Laser Shaft Alignment System

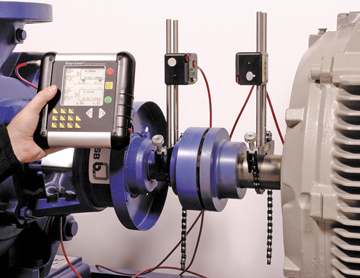

Looking for a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines? The Easy-Laser® D450 is focused on bringing simplicity to the user, all parts included in the system are designed and developed for rough use and are easy to mount on to the machines. Step-by-step instructions on the display through the entire measurement procedure and the simple measurement principle is based on the “reverse indicator method” with two laser/measuring units mounted on each side of the coupling.

This system includes two measurement programs: Horizontal shaft alignment and Softfoot. The displayed measurement resolution can be set as low as 0,001 mm. When the measurement is complete you can produce a printout, save in the display unit or transfer the data to your PC.

The Easy-Laser® D450 is a base system, with the performance and potential for expansion of our more advanced ones with the available accessories.

Source: ITM Instruments Inc.
